ExSight ATEX Inspection Camera and Pole Package.

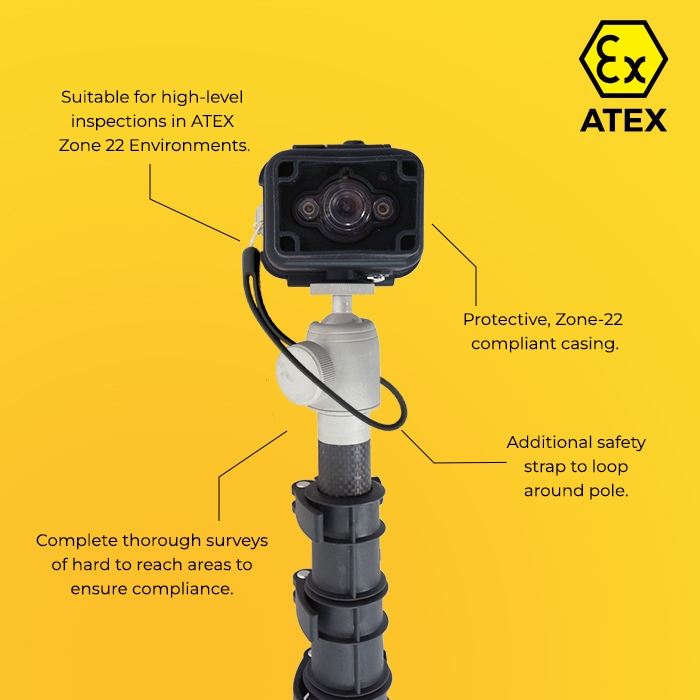

This ExSight ATEX Inspection Package is our solution to high-level inspections in ATEX Zone 22 environments. It includes our innovative ATEX High-Level Inspection Camera with an additional safety strap to loop around the lightweight ExSight Inspection Pole, reaching up to 34ft high. This comprehensive system is designed to ensure safety and compliance solution for surveyors, inspectors and health & safety professionals who need to examine high-level areas without leaving the ground.
Advanced Inspection Capabilities
The ExSight ATEX Inspection Camera safer inspections, faster reporting and clear visual evidence for compliance records. This system allows you to safely inspect roofs, ducting, pipework, beams and plant structures, in spaces including but not limited to:
- Food processing facilities
- Grain storage and milling plants
- Manufacturing environments
- Warehouses with dust-risk zones
- Industrial processing sites

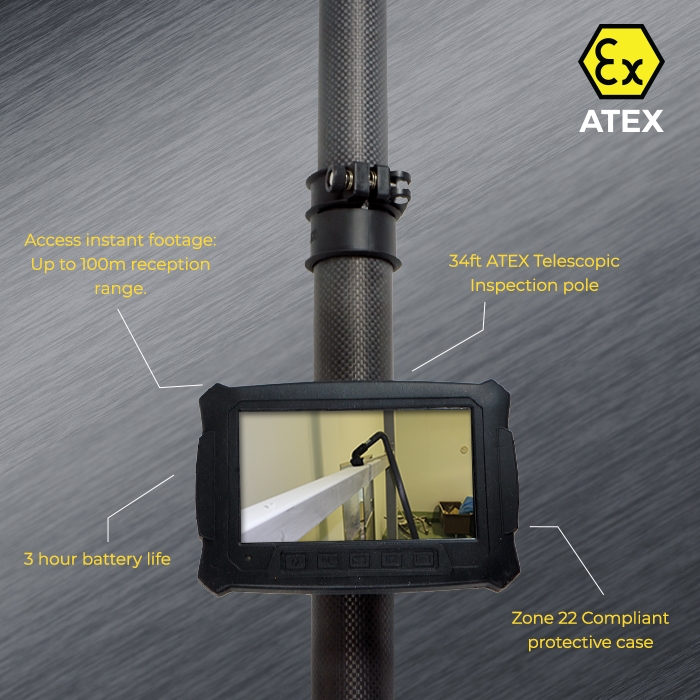

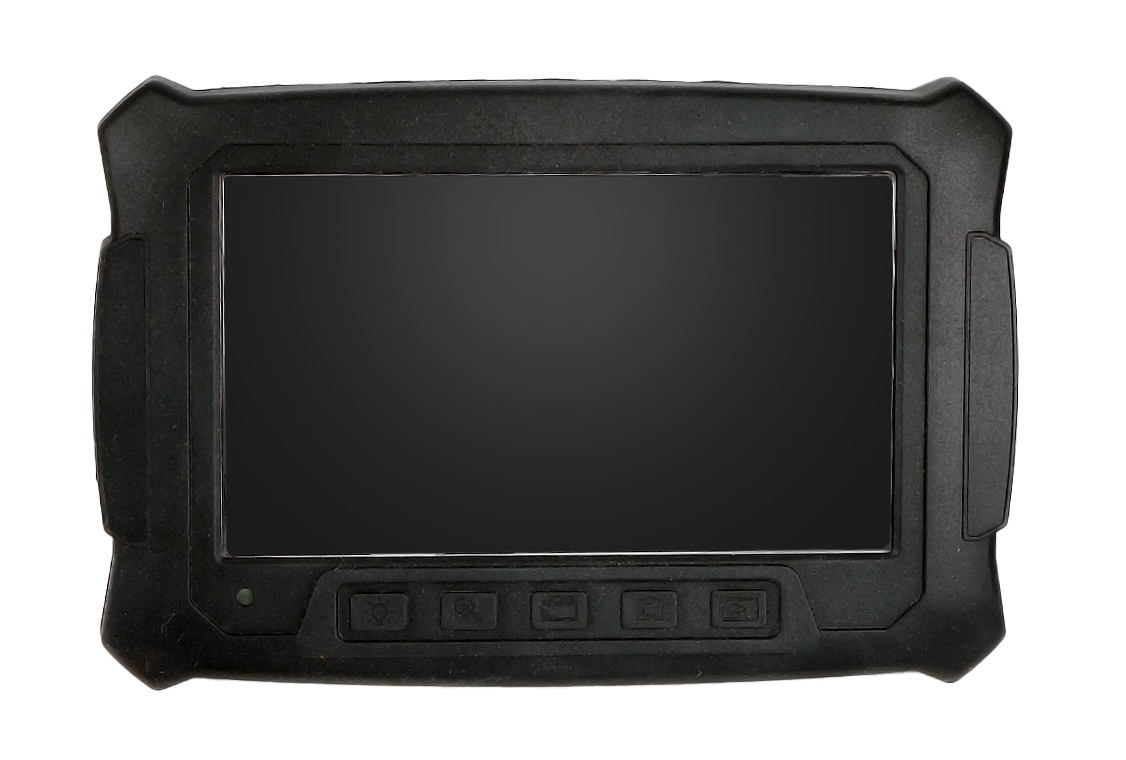

Large LCD monitor:
The system boasts a 5” high-definition monitor, allowing clear viewing of critical high-level images. Surveyors and safety teams can capture footage for an accurate visual record of site conditions to support:
- Compliance documentation
- Maintenance reporting
- Hazard identification
- Insurance evidence
- Contractor verification
Secure and reliable signal:
Utilising GFSK modulation, the ExSight ensures a stable and dependable signal, granting visibility into otherwise hard-to-reach locations.
See and share images and video:
Benefit from instant playback on the SurveyCam 5” HD monitor or via a Micro SD Card Reader, which ensure easy downloading and sharing of footage to confirm all hazardous materials have been successfully removed.
Not compatible with iPhones.
IMPORTANT: Charging the camera and monitor, and sharing footage via the SD Card Reader, must always be performed outside of ATEX Zones. Not all items will be certified for use in ATEX Zones. Cleaning with non-certified tools creates ignition sparks, which can lead to explosions.
Specifications:
- II 3 D Ex tc IIIC T85°C Dc Tamb -10°C to +50°C
- ATEX Zone 22 Compliant

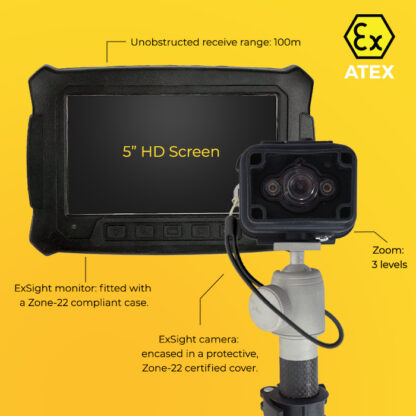

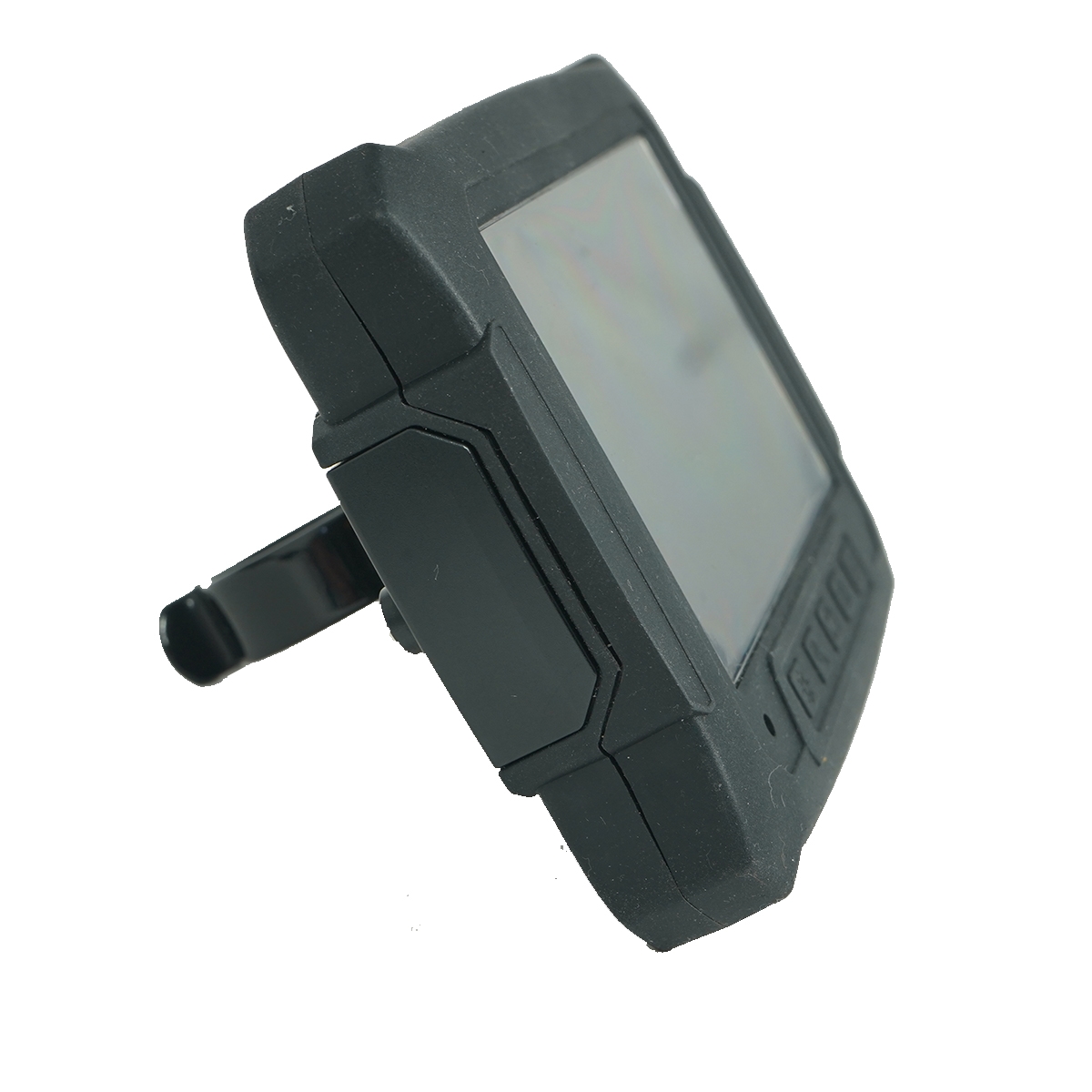

Monitor:
- Screen size: 5″ TFT LCD
- Display resolution: 1280 x 720
- Unobstructed receive range: 100m
- Zoom: 3 levels
- Modulation mode: GFSK
- Power supply: 5v (VDC)
- Battery (integrated): 2500 mAh
- Charge time: 3 hours
- Working time (full charge): 3 hours
- Memory: T-Flash Card
- Max memory size: 64GB
- Picture format: 1 x JPEG
- Video format: 1280 x 720 HD – MP4
- Picture/video resolution: 720 Pixels
- Operation temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
- Dimensions: 150 L x 20 W x 100 H mm
- Weight: 255g
- Weatherproof rating: IP64 for light showers

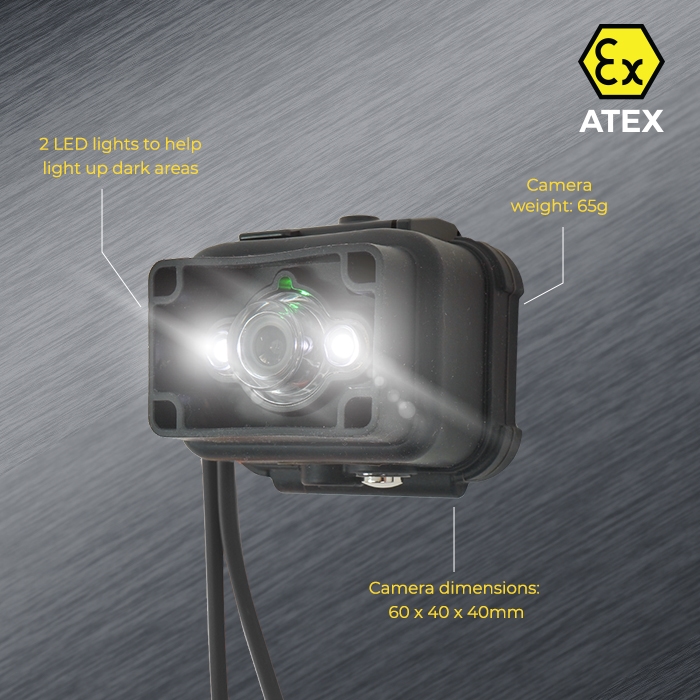

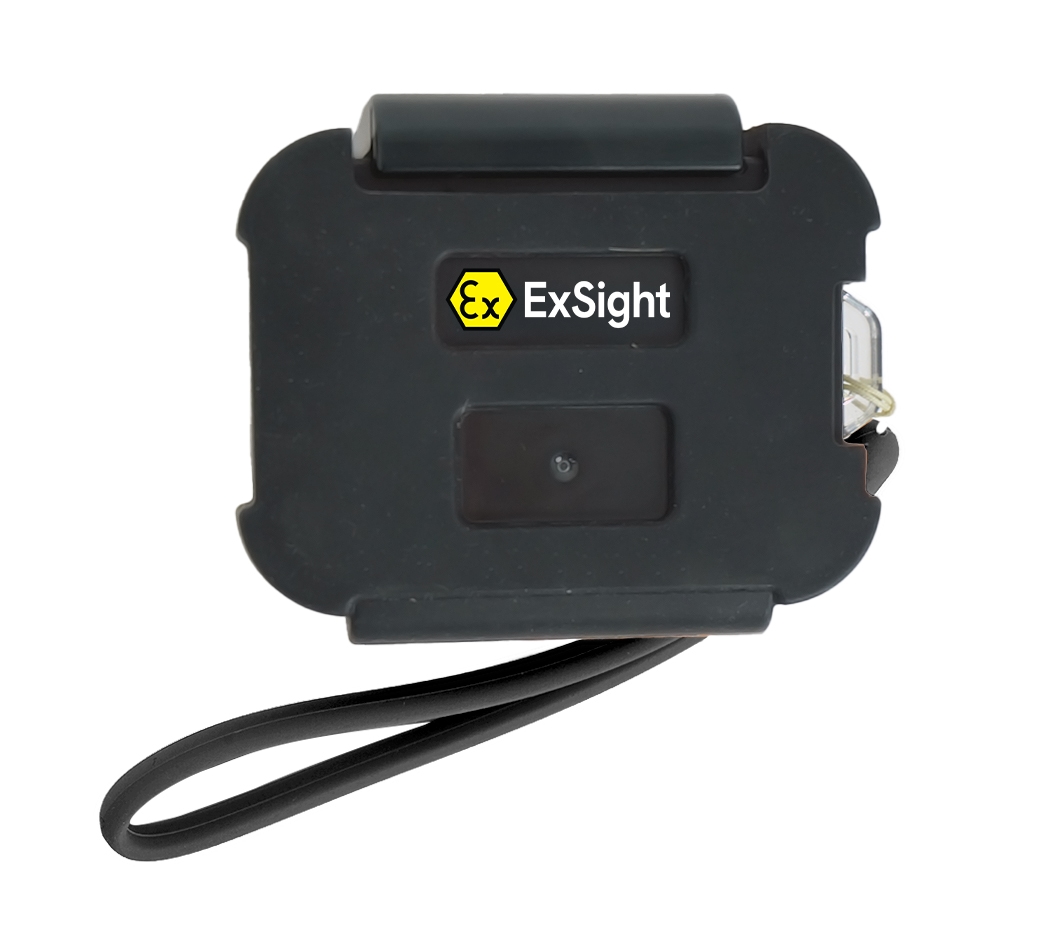

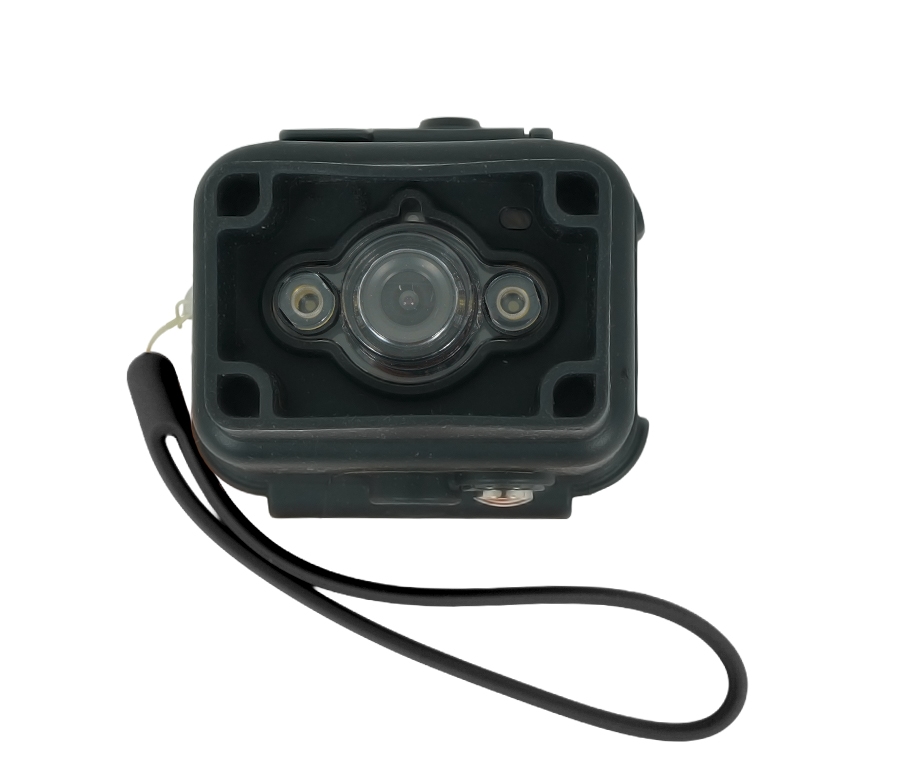

Camera:
- Image sensor: 1/4 Inch JX-H62
- Effective pixels: 1280 x 720
- View angle: 45°
- Transmission frequency: Encrypted 2400~2483 MHz
- Modulation mode: GFSK
- White LED light range: 2m
- Power supply: 5v DVC
- Battery (integrated): 1200 mAh
- Charge time: 2 hours
- Working time (full charge): 2.5 hours (LED OFF) / 2 hours (LED ON)
- Operation temperature: ℃/°F -10~+50℃ /+14~+122°F
- Dimensions: 60 L x 40 W x 40 H mm
- Weight: 65g
- Weatherproof rating: IP64 for light showers
ExSight Output:
- Video: 1280 x 720 HD When filming for longer periods (videos are automatically saved as 10 minute video files)
- Images: 1MP
Please note: The ExSight is not compatible with iPhones.
ExSight Inspection Pole:
- Height: 34ft
- Collapsed Height: 2.02m
- Weight: 2.2kg
- Telescopic sections: 5
- Materials: High Modulus Carbon Fibre

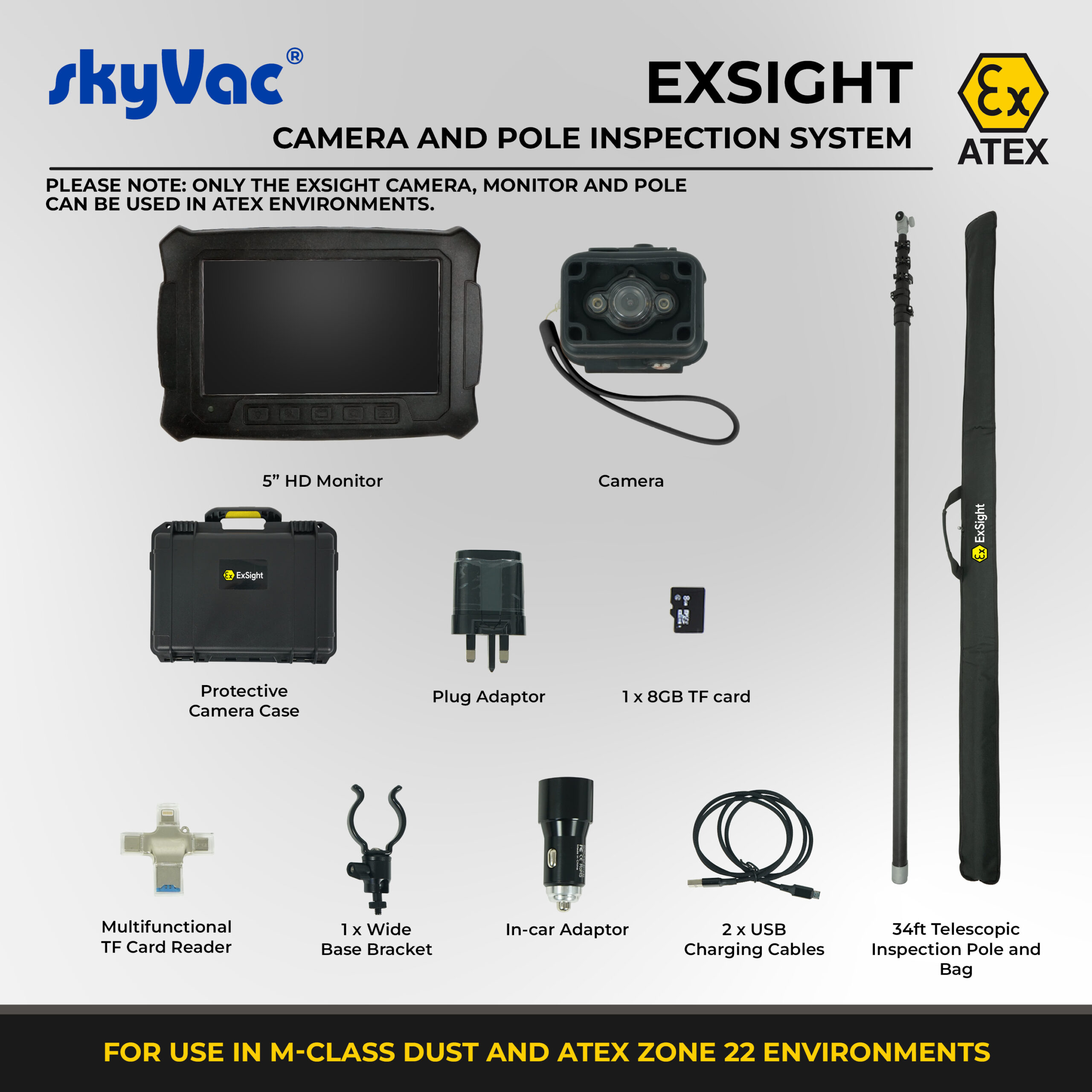

Included as Standard:
- 1 x ExSight Camera
- 1 x ExSight Monitor
- 1 x 34ft ExSight Inspection Pole
- 1 x 8GB TF Card
- 1 x Multi-Functional TF Card Reader
- 1 x Monitor Bracket
- 1 x Camera Bracket
- 1 x Plug Adaptor
- 1 x Car Adaptor
- 2 x USB Charging Cables

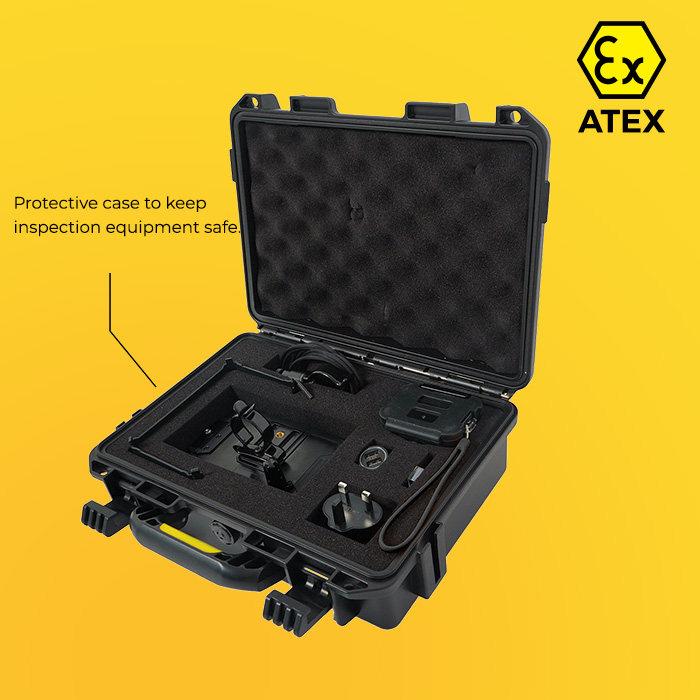

- 1 x Protective Case

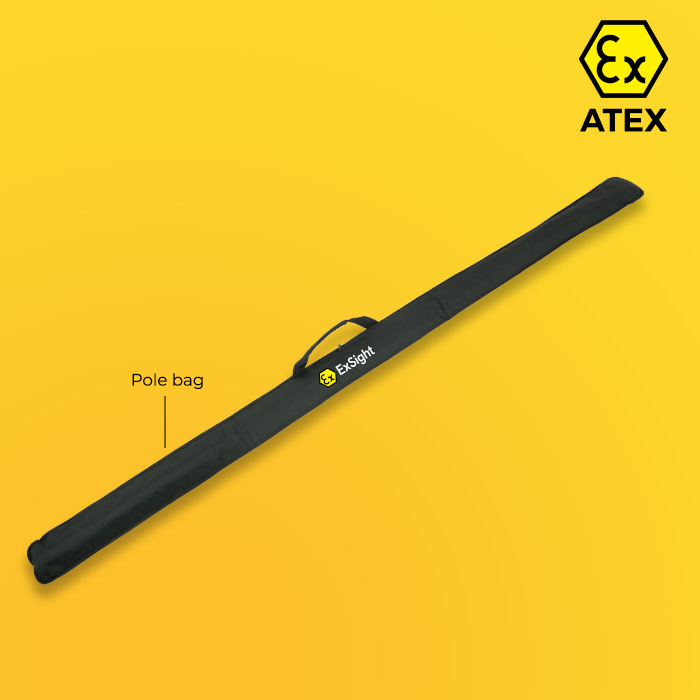

- 1 x Pole Carry Bag
IMPORTANT: Charging of the camera and monitor, and sharing footage via the SD Card Reader, must always be executed outside of ATEX Zones. Not all items will be certified for use in ATEX Zones. Cleaning with non-certified tools creates ignition sparks that can lead to explosions.
ATEX Compliance:
Compliance with the Essential Health and Safety Requirements has been assured by compliance with the following standards:
EN IEC 60079-0:2018, EN 60079-31:2014, EN ISO 80079-36:2016
Special Conditions for Safe Use:
- The camera and monitor shall only be charged in a safe area
- Focusing of the camera unit shall be completed only in the safe area
- The camera unit shall be installed in the outer case prior to entry into the hazardous area
- The port access door on the monitor unit shall only be opened in the safe area
- The device has been tested for low impact energy and shall not be exposed to high impact risk
